Cable entry frames

Cable entry frames

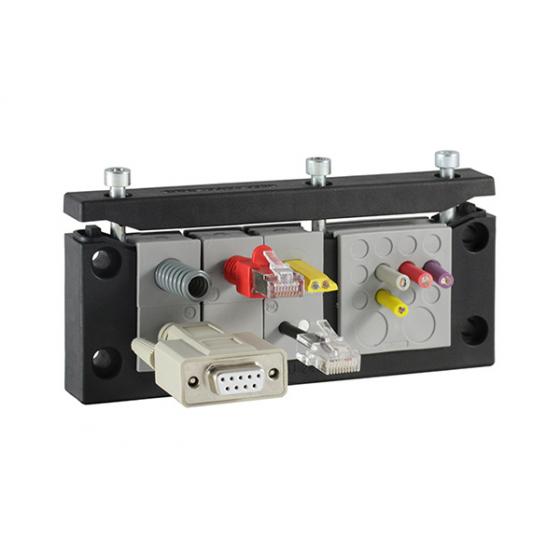

ICOTEK's patented cable feed-through system allows you to easily install, seal and provide strain relief for pre-assembled cables with connectors. It features quick and very simple installation. Moreover, the high cable density results in a smaller surface area needed for cable feed-through.

The key feature of this system is the split frame. It uses split cable glands that enable fast, easy and cost-effective routing of cables, hoses or pipes. The divisible frame with split glands eliminates the need for manual cable modifications. Since you don't need to modify the cables, you also maintain the warranty on all your cables.

Main advantages:

  • Fast and tool-free assembly

  • Preserves all cable warranties

  • High-density cable routing in minimal space

  • Cost-efficient cable management solution

  • Suitable for cables, hoses and piping systems

This innovative solution is particularly useful for maintenance and retrofit applications, enabling easy cable replacement without disconnecting entire assemblies.

Read more

Read more

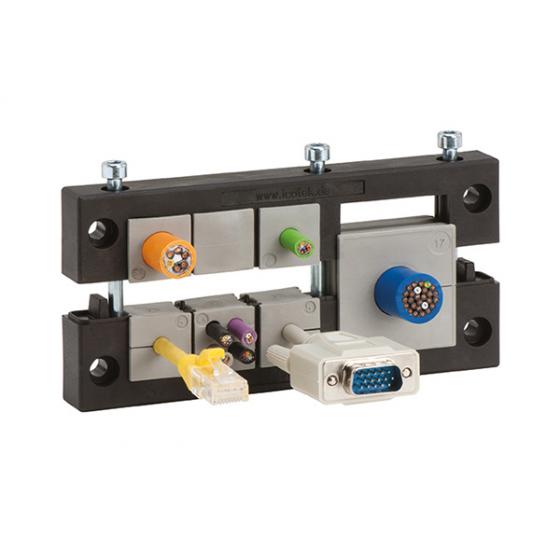

ICOTEK's KEL Cable Feed-Through System

Cables, hoses, and pipes of varying diameters can be easily installed thanks to the wide range of available cable glands. When properly mounted, the glands are securely held in place within the frame. Selecting the correct gland size for the cable diameter ensures high protection (up to IP68/UL Type 4X) and provides strain relief in compliance with EN 62444.

Fully Split Design

The KEL cable feed-through system is fully split, consisting of:

  • A divisible frame with multiple slots

  • Glands that snap into place along with the cables

Installation Process

  1. Select the appropriate gland for the cable diameter and place it around the cable.

  2. Insert the gland into the frame's slots—once seated, it locks securely and cannot fall out.

  3. Close the frame completely, pressing it tightly to ensure a high-pressure seal.

  4. The compression provides EN 62444-compliant strain relief and protection up to IP68/NEMA UL Type 4X.

Certifications & Compliance

ICOTEK’s cable feed-through systems meet key industry standards, including:

  • UL94 V-0 (flame-resistant)

  • IP & UL ratings (up to IP68, NEMA 4X)

  • UL Recognized & DNV-GL certified

  • ECOLAB certified (resistant to cleaning agents & UV)

  • EN 45545-2 (railway fire safety standard)

Available Models (Based on KEL System)

Depending on sealing requirements, different models offer optimal solutions:

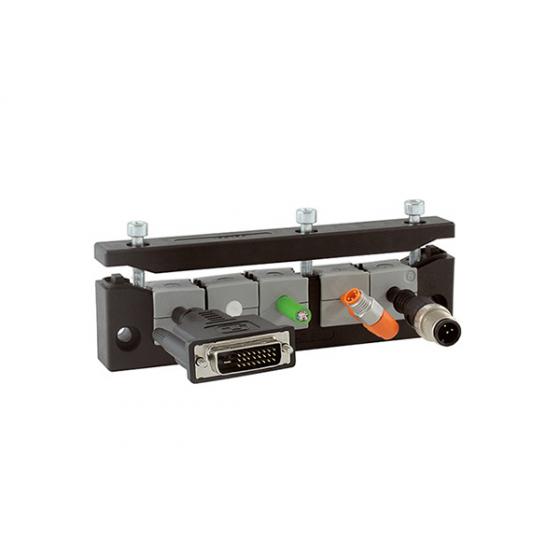

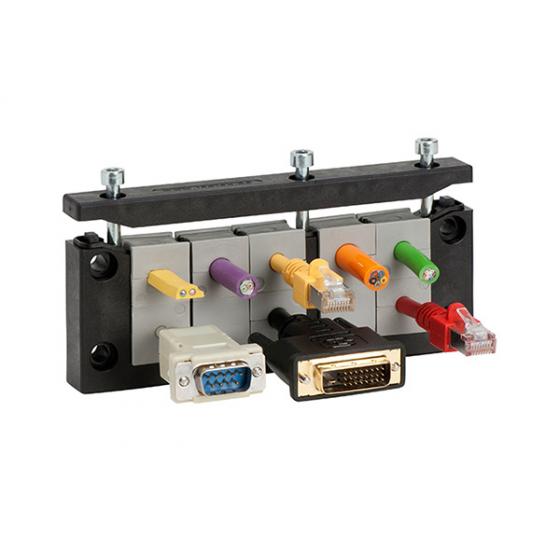

  • KEL-ER Series – For extreme conditions, offering maximum protection against moisture and dust.

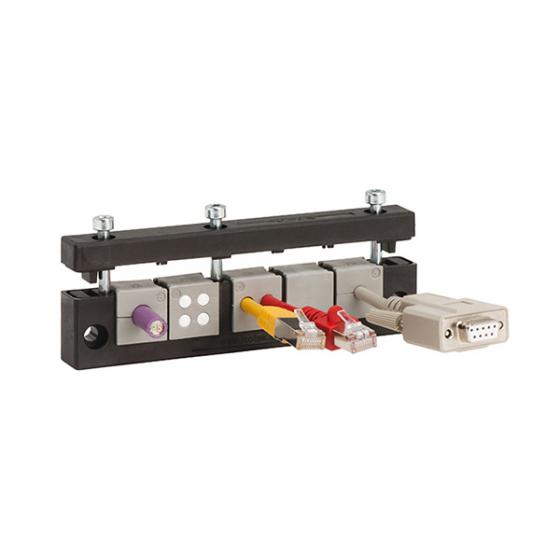

  • KEL-E System – Designed for extremely tight spaces.

  • KEL Extensions – Allow for high cable density while maintaining top-tier quality.

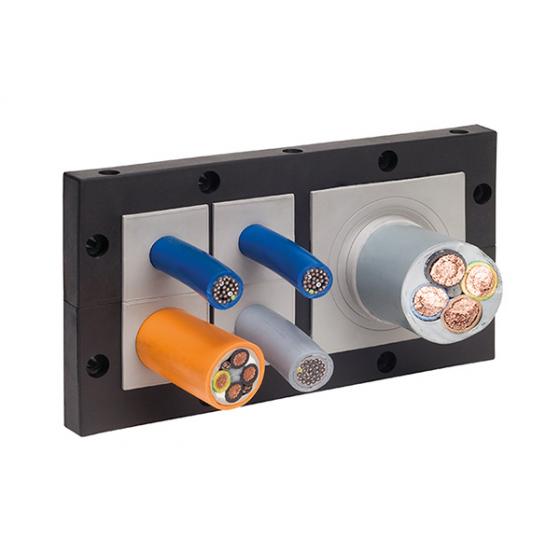

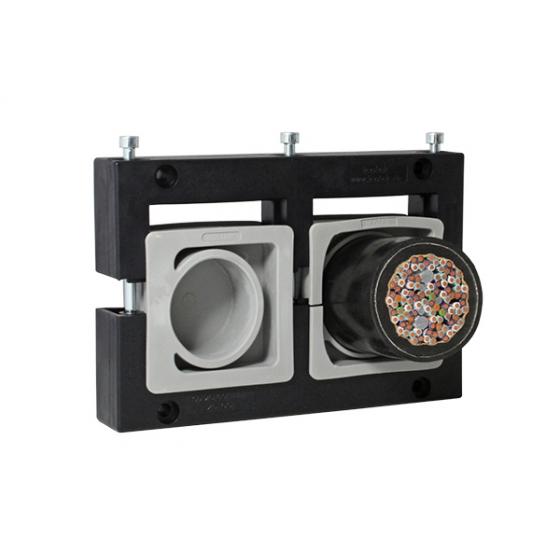

  • KEL-183 Series – Supports large-diameter cables up to 75 mm.

Ideal for industrial automation, rail, marine, and harsh environments where reliability, easy maintenance, and high protection are critical.
